SDA Pneumatic Cushion Seal Gasket, Pneumatic Vibration Damping Washer
| Menşe yeri | Chian |
|---|---|
| Marka adı | DZK |
| Sertifika | ROHS |
| Model numarası | Silindir yastık contası |
| Min sipariş miktarı | 100 adet |
| Fiyat | negotiate |
| Ambalaj bilgileri | 100 adet/çanta |
| Teslim süresi | 7-10 gün |
| Ödeme koşulları | L/C, T/T |
| Yetenek temini | 1000000 pcs/ay |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Silindir yastık contası | Malzeme | Yüksek Sertlik NBR/TPU |
|---|---|---|---|
| Basınç derecesi | 0 - 1.6 MPa | Uygulama kapsamı | -30°C ila +100°C |
| aracı | Yağ yağlanmış gaz, ayrıca kuru hava ve yağsız hava (montaj sırasında gerekli başlangıç yağlaması) | Sertlik | Kıyı sertliği (SHA) 80 ° |
| uygulanabilir kapsam | İnce tip silindirler için uygun | Renk | Beyaz, Sarı, Siyah |
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması

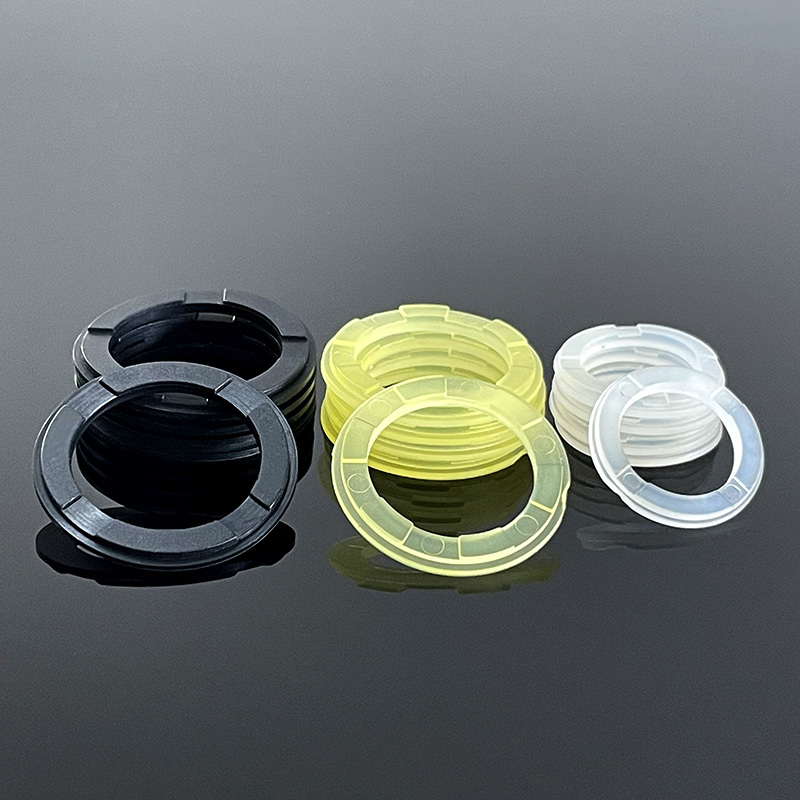

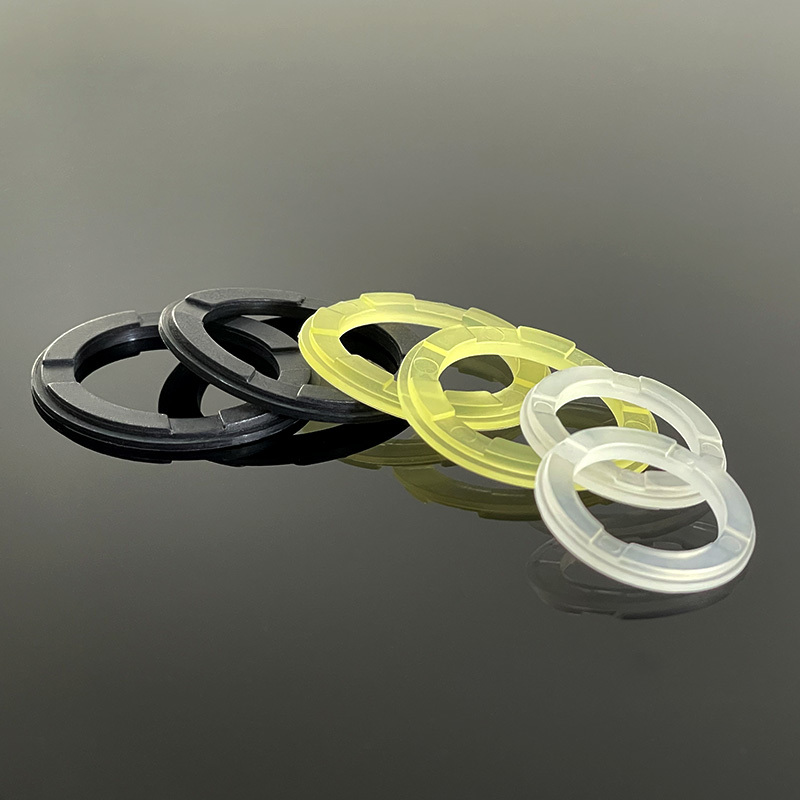

SDA Pneumatic Cushion Seal Gasket | Advanced Vibration Damping Washer
Multi-Functional Sealing & Shock Absorption | Noise Reduction & Equipment Protection
Product Overview
The SDA Pneumatic Cushion Seal Gasket is an engineered polymer component that combines sealing, cushioning, and vibration damping in one integrated solution. Designed specifically for pneumatic systems, it effectively absorbs shock, reduces noise, and prevents leaks in connections subject to pulsation, vibration, or thermal cycling.
Key Features & Benefits
In industrial pneumatic systems, the SDA pneumatic cushioning seal gasket is a key component that precisely buffers the impact at the end of the cylinder piston stroke, such as reducing the rebound speed by 80% in a certain production line, protecting the equipment; it also provides efficient sealing to prevent air leakage, ensuring system pressure stability and energy saving. Additionally, it can automatically compensate for installation deviations and operational changes, ensuring stable operation. Made from high-quality polyurethane, its lifespan is 2-3 times longer than traditional materials. Its compact design integrates cushioning and sealing, saving space. Standardized design makes installation and maintenance easy, helping to reduce factory costs and improve equipment operating efficiency.
Technical Specifications
| Parameter | Standard Value |
|---|---|
| Material | High hardness NBR/TPU |
| Pressure Rating | 0 - 1.6 MPa |
| Scope of application | Suitabie for thin cylinders |
| Temperature Range | -30°C to +100°C |
Product performance
The SDA/MAL cylinder buffer gasket is used for cushioning and vibration reduction in cylinders. It mitigates the impact between the piston metal and the cylinder metal during reciprocating motion, effectively providing cushioning, vibration reduction, and protection for metal parts, thereby reducing noise during the cylinder's reciprocating motion and extending the cylinder's service life. These types of cylinder seals are easy to install. To avoid damaging the seal, measures should be taken to avoid sharp edges during installation, initial lubrication should be applied, and the cylinder surface should be kept smooth to enhance the seal's service life.
Applications
-
Pneumatic Cylinders: Mounting cushions for smooth operation
-
Air Compressors: Vibration isolation at connection points
-
Robotic Systems: Shock absorption for pneumatic grippers
-
HVAC Controls: Vibration damping in pneumatic actuators
-
Industrial Automation: Vibration isolation for precision equipment
