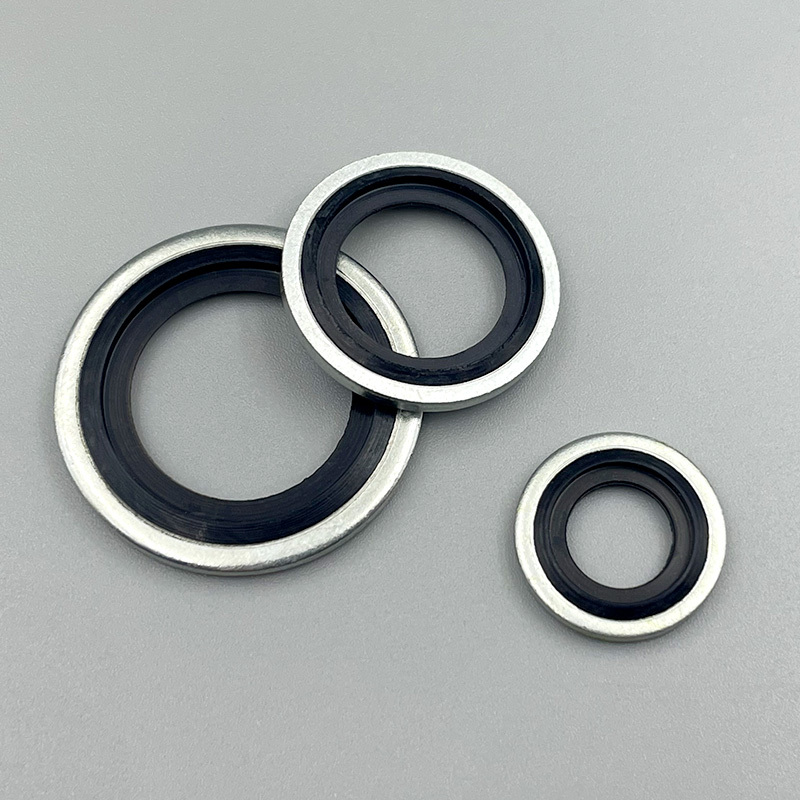

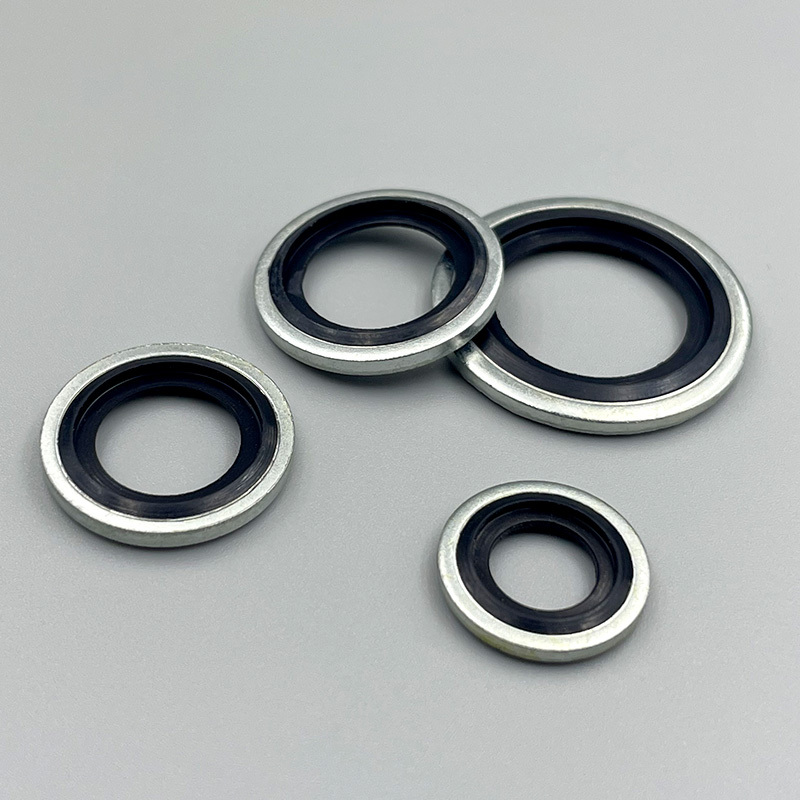

Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
| Menşe yeri | Chian |
|---|---|
| Marka adı | DZK |
| Sertifika | ROHS |
| Model numarası | JB982-77 |
| Min sipariş miktarı | 100 adet |
| Fiyat | negotiate |
| Ambalaj bilgileri | 100 adet/çanta |
| Teslim süresi | 7-10 gün |
| Ödeme koşulları | L/C, T/T |
| Yetenek temini | 1000000 pcs/ay |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Kombine sızdırmazlık yıkama mühürleri | Birincil malzemeler | 304 Paslanmaz Çelik, NBR |
|---|---|---|---|
| Sıcaklık aralığı | -25 ° C ila +100 ° C | Orta | Yağ |
| Yönetim standardı | JB982-77 | Sertlik | 70 kıyı sertliği |
| karakteristik | Yağa dayanıklı, aşınmaya dayanıklı, su geçirmez ve toz geçirmez, yüksek sıcaklık dirençli |
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması
JB982-77 Combined Sealing Washer | All-Metal Self-Sealing Washer for High-Pressure & High-Temperature Applications
Integral Sealing & Fastening | Aerospace & Hydraulic Standard | Reusable Design
Product Overview
The JB982-77 Combined Sealing Washer is a precision-engineered,Composed of a metal gasket and rubber, it uses oil as the medium and is used for sealing threaded pipe joints and plugs. Its operating pressure is 400 kgf/cm² (39.2 MPa) and operating temperature ranges from -25℃ to 80℃. The gasket is a component placed between the connected part and the nut, usually a flat metal ring. It serves to protect the surface of the connected part from scratches by the nut and distribute the pressure of the nut on the connected part.
Technical Specifications (Typical)
| Parameter | Standard Specification |
|---|---|
| Governing Standard | Jb982-77 |
| Primary Materials | 304 stainless steel, NBR |
| Temperature Range | -25°C to +100°C |
| Hardness | 70 Shore Hardness |
| characteristic | Oil-resistant, wear-resistant, waterproof and dustproof, high-temperature resistant |
Core Features and Advantages
- Two-in-One Design: Combines the functions of a flat washer and a sealing washer, simplifying the assembly process.
- All-Metal Construction: Made of stainless steel, suitable for extreme temperature and pressure environments.
- Pressure-Activated Sealing: The sealing lip deforms under bolt torque to form an airtight or liquid-tight seal.
- Reusable: Can usually be reused multiple times if within the deformation limit, reducing lifecycle costs.
- Wide Compatibility: Resistant to corrosion, radiation, and most highly corrosive chemicals.
Application Fields
It is widely used in hydraulic and pneumatic systems, construction machinery and other fields. It is suitable for working conditions with sealing surface deviation or vibration, ensuring sealing reliability.
