Piston Cylinder Wear-resistant Sealing Ring Support Guide Ring
| Menşe yeri | Chian |
|---|---|
| Marka adı | DZK |
| Sertifika | ROHS |
| Model numarası | Piston silindiri aşınmaya dayanıklı sızdırmazlık halkası |
| Min sipariş miktarı | 100 adet |
| Fiyat | negotiate |
| Ambalaj bilgileri | 100 adet/çanta |
| Teslim süresi | 7-10 gün |
| Ödeme koşulları | L/C, T/T |
| Yetenek temini | 1000000 pcs/ay |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | Piston silindiri aşınmaya dayanıklı sızdırmazlık halkası | Sıcaklık aralığı | -30°C ila +100°C |
|---|---|---|---|
| Basınç derecesi | 0-2Mpa | Standart malzemeler | Yüksek sertlik pom |
| Ürün rengi | Turuncu | Ürünün yüzeyi | Pürüzsüz ve çapaksız |
| Uygulama alanı | standart silindir | Performans | korozyona dayanıklı 、 Yüksek sızdırmazlık 、 Düşük sıcaklık dirençli 、 Yüksek sıcaklık dirençli |
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması

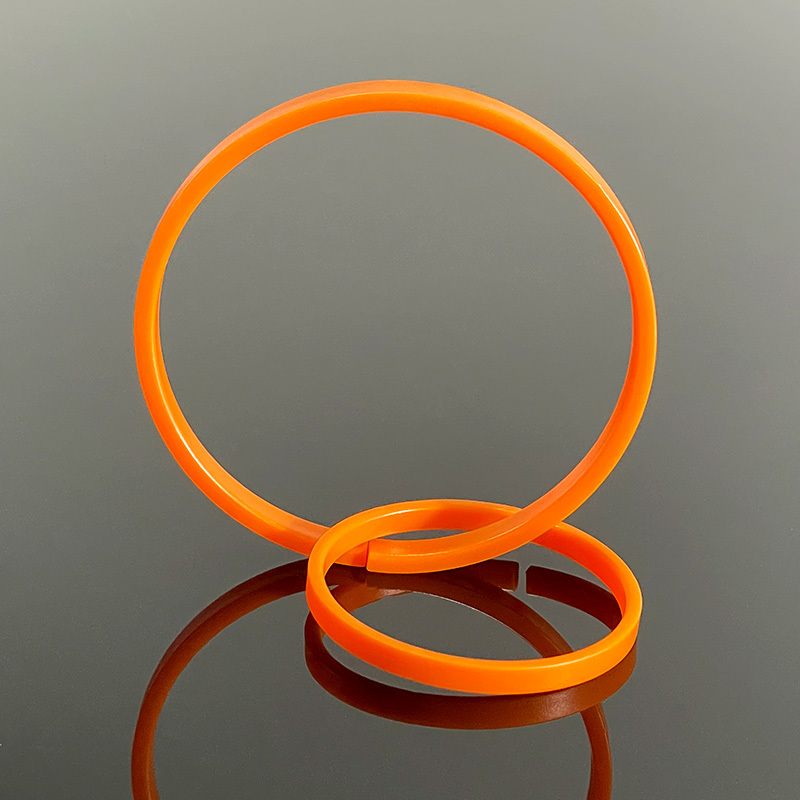

Piston Cylinder Wear-resistant Sealing Ring | Extended Service Life & Reliable Performance
Product Overview
The Piston Cylinder Wear-resistant Sealing Ring is a high-performance sealing solution engineered for demanding hydraulic and pneumatic applications. Utilizing advanced materials and precision manufacturing, this seal delivers exceptional durability, reliable sealing performance, and extended service life even under harsh operating conditions.
Core Features and Advantages
- Excellent Wear Resistance - Advanced POM material can withstand abrasive environments
- Low Friction Design - Optimized geometric structure reduces heat generation and energy consumption
- Superior Sealing Performance - Maintains effective sealing under high pressure and dynamic conditions
- Wide Pressure Range - Reliable operation between 0-2Mpa
Technical Specifications
| Parameter | Standard Range |
|---|---|
| Temperature Range | -30°C to +100°C |
| Pressure Rating | 0-2Mpa |
| Standard Materials | High hardness POM |
| Color | Orange |
Applications

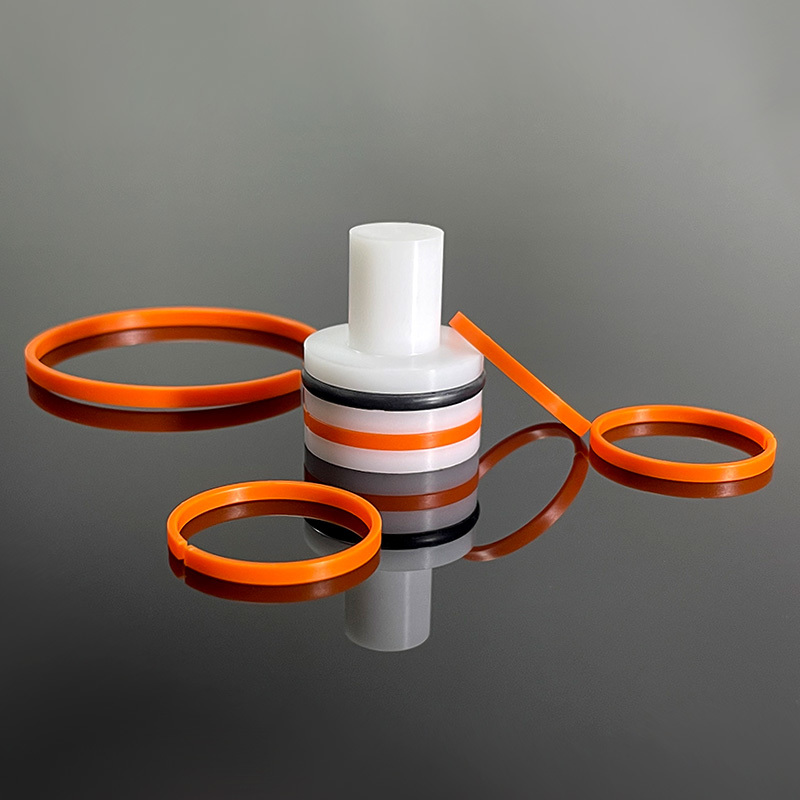

This guide ring is a component used in cylinders to support the movement of pistons. It prevents direct contact and friction between the piston and the cylinder body during motion, thereby protecting both the cylinder body and the piston from damage. It is easy to install, can be quickly fastened without auxiliary tools, can compensate for boundary forces, has good wear resistance and a long service life, can absorb lateral loads, and due to the centering effect of the wear-resistant ring, can increase the extrusion gap of the seal.
- Hydraulic Cylinders - Excavators, presses, injection molding machines
- Pneumatic Systems - Industrial automation, robotics
- Heavy Machinery - Construction equipment, agricultural machinery
- Industrial Equipment - Pumps, compressors, valves
- Mobile Equipment - Cranes, forklifts, mining equipment
